Explore Laser Cut Box Projects for Small Gifts and Keepsakes
A good laser cut box project starts with the contents, not the decoration. A wedding card holder needs an accessible slot and enough internal space, while a keepsake box benefits from a secure lid and a small gift box should stay compact enough to feel intentional rather than oversized. The designs below cover those different needs with card boxes, memory boxes, jewelry boxes, compartment boxes, and small presentation boxes.
The main differences worth comparing are finished size, lid style, internal organization, material thickness, decorative detail, and how much assembly a project requires. Some options are made for 3 mm sheet material, while others include files for several common thicknesses.
A much broader range of laser-ready box designs exists, so this shortlist concentrates on projects suited to cards, keepsakes, jewelry, small gifts, and other compact items.
For small gifts and keepsakes, compact hinged or flip-lid boxes provide the most versatile starting point. Wedding card boxes make more sense when envelopes need to be collected at an event, while ring boxes and shallow jewelry boxes work better for very small presentation pieces. Compartment designs are useful when organization matters as much as appearance.
What Matters When Choosing a Laser Cut Box Project
Start with the finished contents. A box for greeting cards or wedding envelopes needs much more volume than a ring box, while a shallow design can be easier to use for photos, jewelry, notes, or gift cards.
Next, check material thickness before cutting. Many of these designs are prepared for 3 mm or approximately 1/8-inch material, but several include alternate versions for 4 mm or other thicknesses. Finger joints and slots depend on the dimensions being reasonably close to the intended material.
Lid construction also changes the project. Hinged lids offer easy access, sliding lids keep the construction relatively flat, and removable lids can work well for gift presentation. Highly decorative panels add visual interest but also create more small cutouts, so simpler boxes can make more sense when speed and easy cleanup are priorities.
Finally, consider scale. A box that works well for wedding cards may feel unnecessarily large for jewelry, while a tiny presentation box will not accommodate bulky keepsakes. Check the listed dimensions before arranging material on the laser bed.
Quick Picks
For wedding cards: Laser Cut Wedding Card Box SVG Files — a tall post-box-style project with an envelope slot and personalization space.
For small gifts: Laser Cut Small Jewellery Boxes SVG File — a compact flip-lid format with six decorative top options.
For a special keepsake: Book Box Laser Cut SVG Files — a book-shaped container suited to notes, photos, or a small sentimental gift.
For rings: Ring Box File — a purpose-built compact box sized for two rings.
For divided storage: Laser Cut Box with 6 Compartments — a sliding-lid box that separates small pieces into six sections.
Laser Cut Box Projects for Different Gifts and Keepsakes

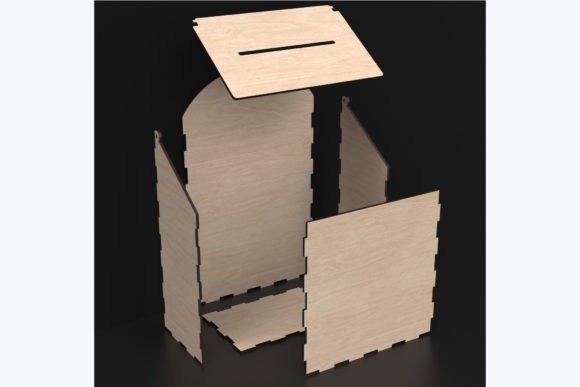

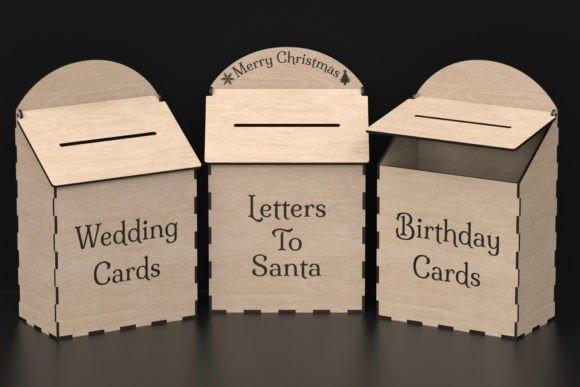

1. Laser Cut Wedding Card Box SVG Files
This post-box-style design is intended for wedding cards, birthday cards, Santa letters, and similar envelope-based collections. Its finished dimensions are listed at approximately 36 × 22 × 12 cm, giving it substantially more capacity than the smaller gift boxes in this roundup. The top includes a slot, and the design can be personalized with engraved wording.
Choose it when guests need to deposit cards during an event and the box itself should become part of the display. For a compact personal keepsake rather than an event card collector, the Book Box or small decorative jewelry boxes below make more sense.

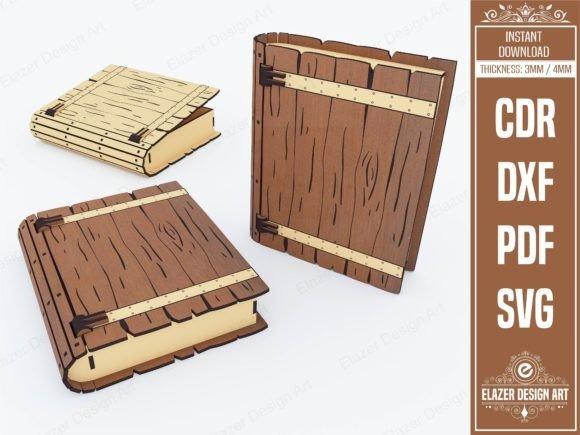

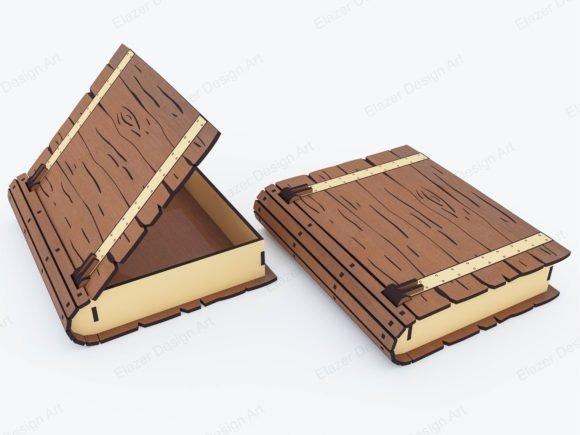

2. Book Box Laser Cut SVG Files, Gift Box
The Book Box uses a book-inspired format with outer dimensions of about 150 × 180 × 40 mm and an interior around 120 × 160 × 32 mm. Files are supplied for 3 mm and 4 mm material, making this a useful middle ground between tiny jewelry boxes and large memory chests.
It suits handwritten notes, photographs, gift cards, small mementos, or a flat handmade gift where presentation matters. The relatively shallow interior is less useful for bulky objects, but that same proportion keeps the project compact and easy to display.

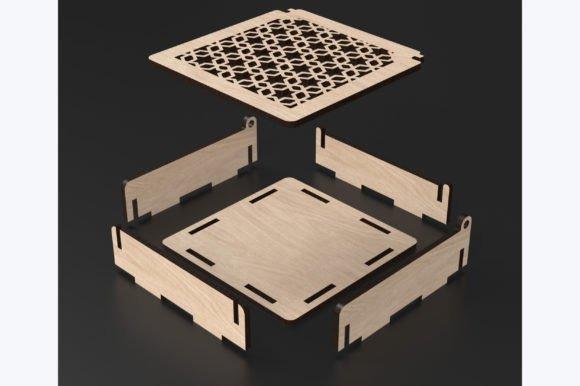

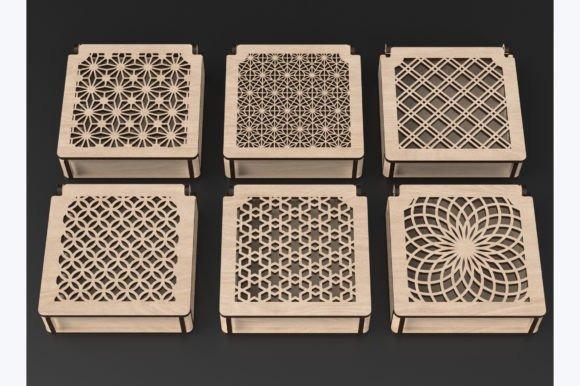

3. Laser Cut Small Jewellery Boxes SVG File
This compact 120 × 120 × 34 mm box is designed around a flip-up lid and includes six different decorative top choices. Its shallow proportions are well suited to jewelry, gift cards, small notes, and other petite keepsakes that do not require a deep container.
The decorative lid choices make this one useful when you want several finished boxes from the same basic construction without every project looking identical. For deeper storage, choose the Keepsake Box or Oriental Style Jewelry Box instead.

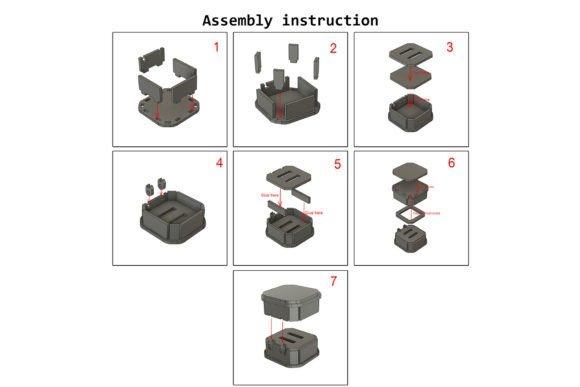

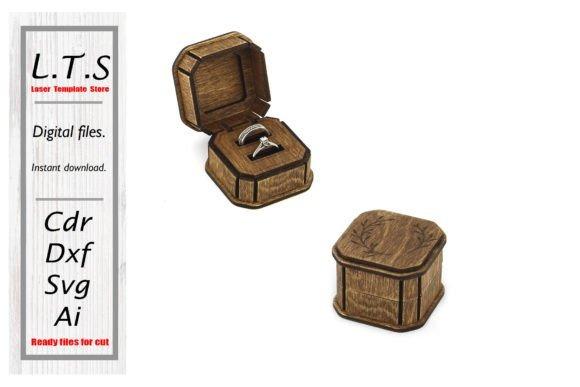

4. Ring Box File
This small wooden ring box is built specifically around two rings and has finished dimensions of approximately 4 × 5.5 × 5.5 cm. Separate versions are provided for 3 mm and 1/8-inch material, and the product notes that the ring openings may need adjustment for individual rings.
Choose this for proposals, weddings, anniversaries, or other situations where the box should feel closely matched to the item inside. Its specialized layout is less versatile than a general-purpose gift box, but that is also what makes the presentation more intentional.

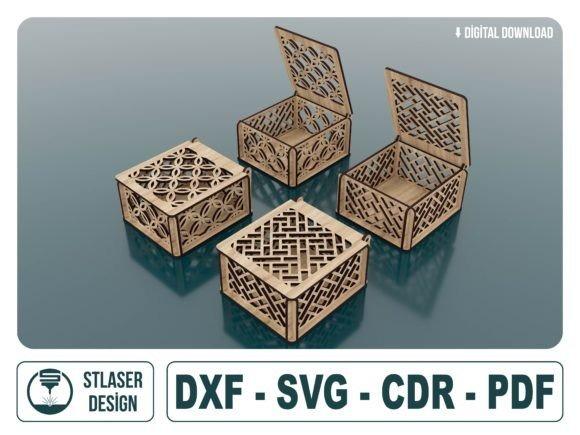

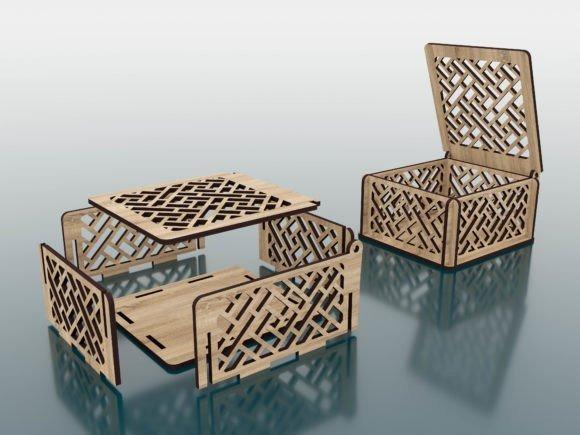

5. Decorative Gift Box Laser Cut
At roughly 100 × 110 × 53 mm, this decorative box is compact enough for a small handmade present, jewelry, cash gift, note, or other token. The files are created around 3 mm or 1/8-inch material and include SVG, DXF, CDR, and PDF formats.
The proportions give it more depth than the very shallow flip-top jewelry boxes without turning it into a full-size storage container. Consider it when you need a true small gift box rather than a box designed around long-term organization.

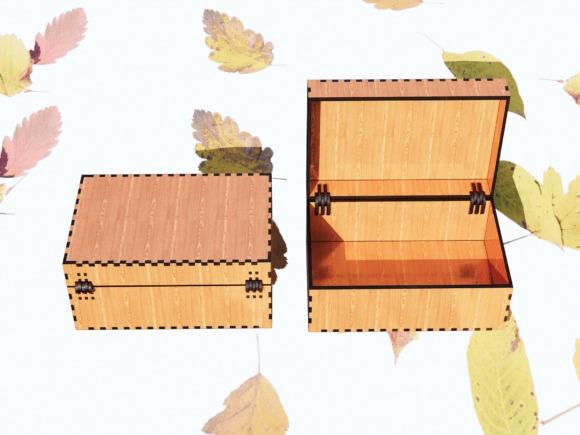

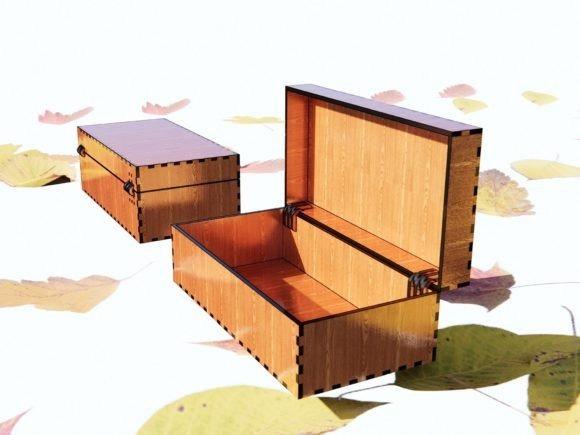

6. Keepsake Box
This straightforward keepsake and jewelry box uses a hinged lid and measures about 200 × 100 × 70 mm. It is designed for 3 mm material and includes vector files in SVG, DXF, and EPS formats.
The rectangular shape offers more practical interior volume than highly specialized ring boxes while remaining compact enough for a shelf or dresser. It makes sense for mixed keepsakes, letters, jewelry, or a group of small gifts. Choose a more decorative option when the exterior needs to carry most of the visual impact.

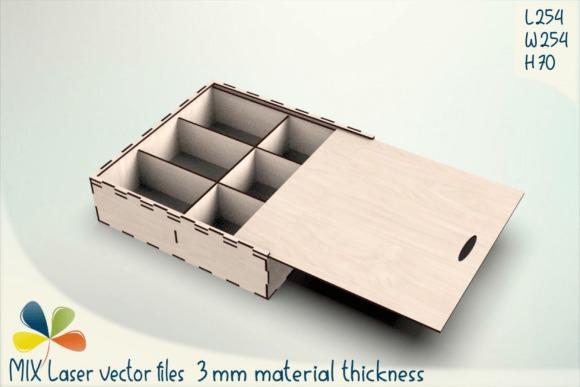

7. Laser Cut Box with 6 Compartments
This 254 × 254 × 70 mm square box divides the interior into six equal compartments and closes with a sliding lid. The listed design is prepared for 3 mm material and is intended for small objects such as trinkets, beads, tea bags, and craft supplies.
It is the practical choice when one open cavity would allow small contents to mix together. The larger footprint makes it less suitable for a single tiny gift, but it can turn a collection of small items into a more organized presentation.

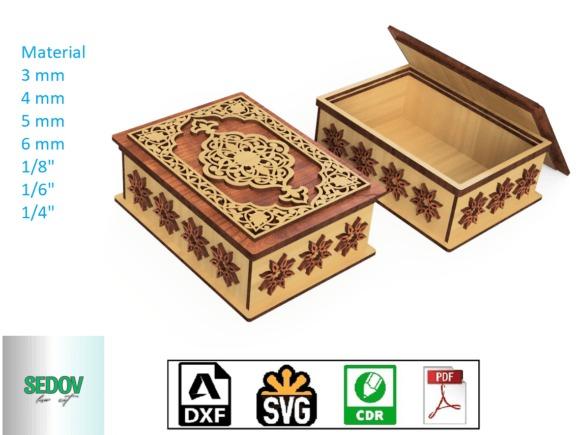

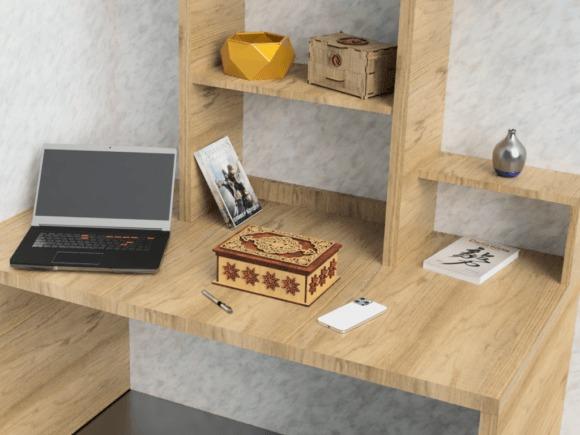

8. Laser Cut Jewelry Box in Oriental Style
This larger decorative jewelry box measures approximately 250 × 180 × 85 mm and uses ornate cut details for a much more elaborate exterior. The template includes versions for several material thicknesses, including 3 mm, 4 mm, 5 mm, 6 mm, and common fractional-inch sizes.
Choose it when the finished box is part of the gift rather than just packaging. The additional decorative cutting and larger size make it better suited to a substantial keepsake project than a quick small favor or ring presentation.

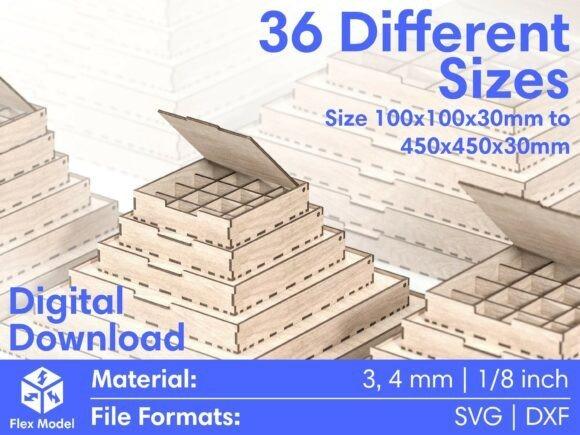

9. Laser Cut Box SVG DXF Files
This flip-up-lid box design stands out because the download includes multiple size configurations and versions for 3 mm, 4 mm, and 1/8-inch material. The design also incorporates compartments, making it adaptable to jewelry, dice, collections, and other groups of small items.
Choose it when you want to reuse one construction style for several differently sized projects. The range of sizes is useful for experimentation, although a purpose-built ring or wedding card box is easier when your end use is already very specific.

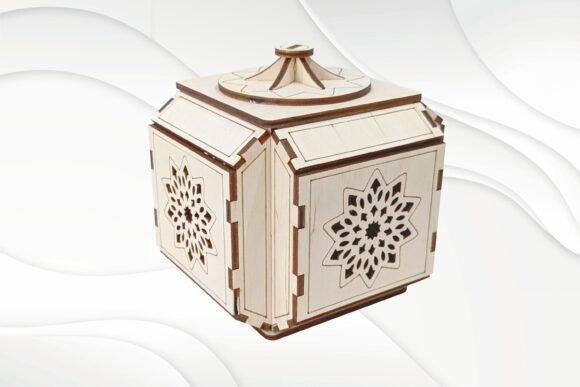

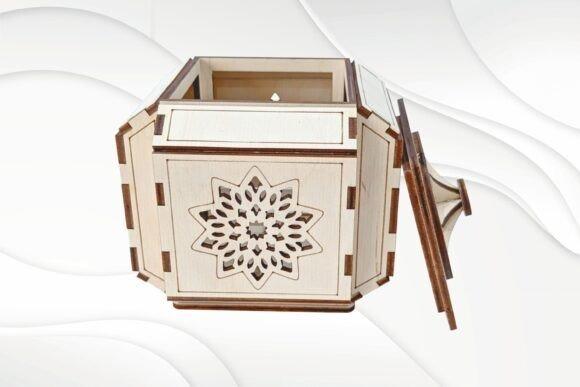

10. Gift Box with Lid, Design Laser Cut
This square gift and jewelry box has a finished footprint of roughly 112 × 112 mm and a height of about 113 mm. The files are prepared around 3 mm material and include SVG, PDF, CDR, AI, EPS, and DXF formats.
The taller shape makes it more useful for a small three-dimensional present than the shallow decorative boxes. If the gift is flat, such as photographs or cards, the Book Box wastes less internal space and creates a more appropriate proportion.

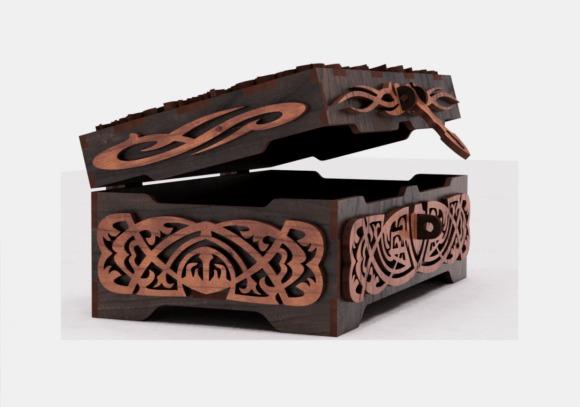

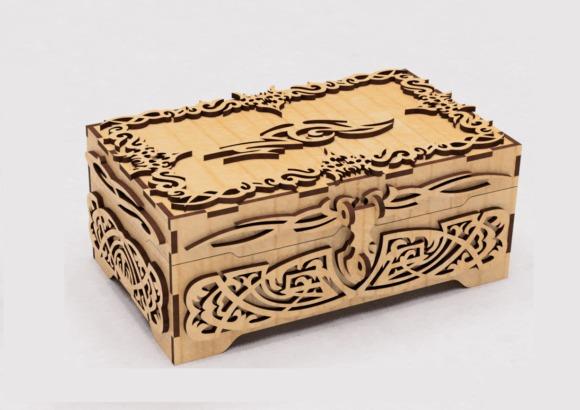

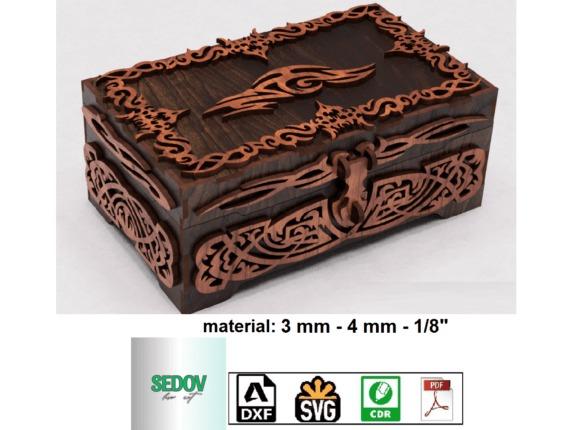

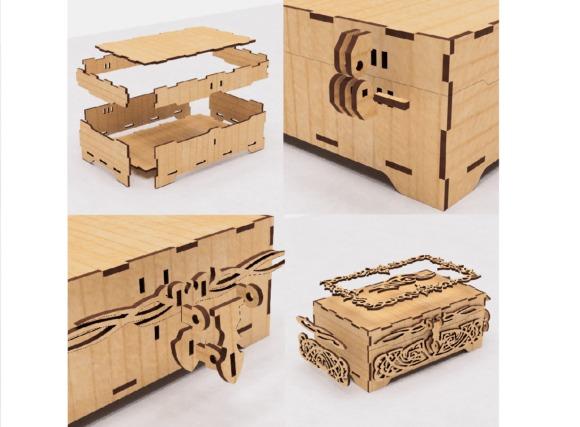

11. Laser Cut Casket, Ornate Memory Box
This ornate memory box combines a decorative pattern with a lid and lock-style detail. Its listed finished size is approximately 250 × 150 × 100 mm, and templates are supplied for 3 mm, 4 mm, and 1/8-inch material.
The added depth works well for jewelry, letters, small heirlooms, and mixed keepsakes. It is visually busier than the simpler Keepsake Box, so choose it when decorative presentation is part of the goal rather than when you want the fastest possible construction.

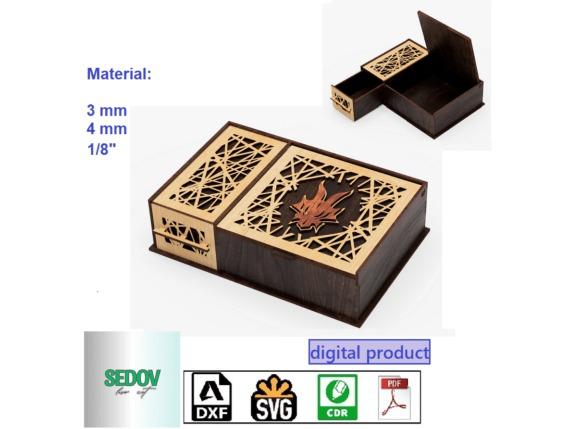

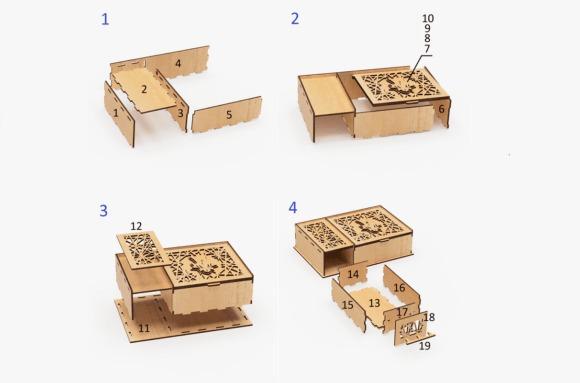

12. Laser Cut Trinket Box with Lid and Drawer
This trinket box combines a traditional hinged-lid compartment with a separate side drawer. The finished size is listed at approximately 300 × 200 × 80 mm, with templates for 3 mm, 4 mm, and 1/8-inch material.
The two-part storage layout makes sense for separating frequently used items from sentimental pieces or dividing a gift into two sections. It requires more space than most projects here, so consider a single-compartment box when simplicity or compact dimensions matter more than organization.

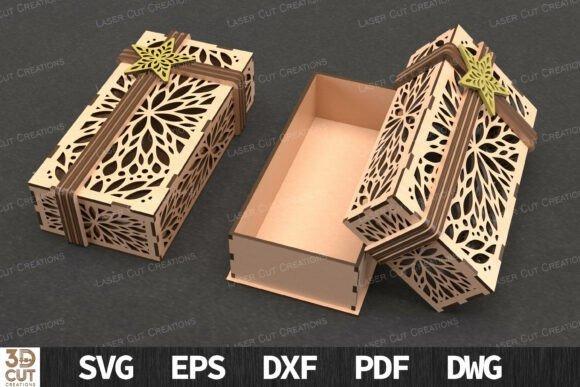

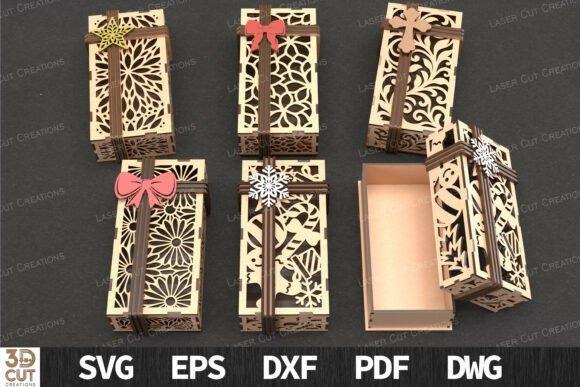

13. Gift Box Bundle Laser Cut SVG Set
This bundle contains six 3D gift box designs with floral, leaf, geometric, snowflake, and cross-inspired decorative treatments. The files are intended for 3 mm wood, plywood, or acrylic and use an interlocking construction; an assembly video is also listed with the download.
The variety makes this option useful when you need several small gift boxes for different occasions without changing to a completely different construction each time. If the goal is permanent keepsake storage rather than presentation packaging, a deeper hinged box offers more practical everyday access.
Compare the 13 Laser Cut Box Projects
| Product | Best for | Style / Type | Project Fit |
|---|---|---|---|
| Laser Cut Wedding Card Box | Event cards | Post box | Weddings and celebrations |
| Book Box | Flat keepsakes | Book-shaped box | Photos, notes, gift cards |
| Small Jewellery Boxes | Small gifts | Flip lid | Jewelry and small keepsakes |
| Ring Box File | Two rings | Presentation box | Proposal or wedding gifts |
| Decorative Gift Box | Compact presents | Decorative box | Small handmade gifts |
| Keepsake Box | Mixed keepsakes | Hinged lid | Letters, jewelry, mementos |
| 6-Compartment Box | Organization | Sliding lid | Small collections |
| Oriental Jewelry Box | Decorative gifts | Ornate box | Larger keepsake gifts |
| Laser Cut Box Files | Multiple sizes | Flip lid with compartments | Reusable box projects |
| Gift Box with Lid | Taller small gifts | Square lidded box | 3D gift presentation |
| Ornate Memory Box | Sentimental storage | Decorative casket | Heirlooms and letters |
| Trinket Box with Drawer | Separated storage | Hinged box + drawer | Mixed small items |
| Gift Box Bundle | Gift presentation | Six decorative boxes | Multiple occasions |
How to Get a Cleaner Fit on Laser Cut Boxes
Box projects put more pressure on dimensional accuracy than flat ornaments or signs. A decorative panel can tolerate small visual differences, but finger joints and slots need to match the actual material closely enough to assemble without large gaps or excessive force.
Measure sheet thickness rather than relying only on its nominal label. Material sold as 3 mm can vary, and a small difference becomes noticeable when multiple tabs must fit together. When a download includes separate versions for several thicknesses, start with the file closest to the material you actually measured.
Kerf matters too. The laser removes a narrow amount of material along every cut. On a decorative silhouette this may barely be noticeable, but repeated joints can become loose if the design and machine settings are poorly matched. Test a small joint or scrap section before committing an entire sheet to a larger box.
Also look at decorative cutouts before scaling. Enlarging a box is usually less risky than shrinking an intricate pattern because thin bridges and small details can become fragile as the project gets smaller. A plain finger-jointed keepsake box is therefore easier to resize than an ornate lattice-style design.
Separate cutting and engraving operations when the design includes both. Engraving names, dates, or decorative details before the final cut can help keep the part stable on the laser bed. If the project will be painted or stained, think about whether finishing individual panels before final assembly will be easier than reaching inside corners afterward.
Finally, dry-fit the parts before applying adhesive. This is especially useful with hinged lids, drawers, and multi-compartment boxes because one incorrectly oriented panel can affect several later connections.
Which Box Style Fits Your Project?
If you are collecting envelopes at a wedding or party, the Laser Cut Wedding Card Box provides the most purpose-specific construction in this selection. For photographs, notes, and flat mementos, the Book Box keeps the project compact while giving the finished piece a distinctive shape.
For jewelry or a small handmade present, the Small Jewellery Boxes offer a practical shallow format, while the Ring Box File makes more sense when the contents are specifically rings. If several tiny objects need to remain separated, the 6-Compartment Box provides built-in organization instead of one open storage space.
For a box that is intended to remain on display after the gift is opened, consider the Oriental Jewelry Box or Ornate Memory Box, where the exterior decoration plays a larger role in the finished project.
Frequently Asked Questions
What material thickness works well for laser cut boxes?
Many laser cut box files are designed around 3 mm or approximately 1/8-inch sheet material, but the correct thickness depends on the specific file. Measure the actual sheet with calipers and use the matching template when multiple thickness versions are provided, because tabs and slots depend on accurate dimensions.
What type of laser cut box works best for small gifts?
A compact lidded or flip-lid box works well for most small gifts because it provides enough depth without creating excessive empty space. Ring boxes suit jewelry presentations, shallow book-style boxes suit notes and photographs, and deeper square boxes make more sense for thicker handmade items.
Can laser cut box files be resized?
Laser cut boxes should be resized cautiously because changing the overall scale also changes tabs, slots, hinges, and decorative details. Simple panels can sometimes be adjusted successfully, but material thickness and joint dimensions may need separate editing. Intricate cutouts can also become fragile when a design is reduced significantly.
Should a laser cut box be glued after cutting?
Many laser cut boxes use interlocking tabs but can still benefit from adhesive for a more permanent assembly. Dry-fit the complete box first so you can confirm orientation, lid movement, drawer clearance, and joint fit before applying glue. Follow the individual file instructions when the designer specifies a particular assembly method.
